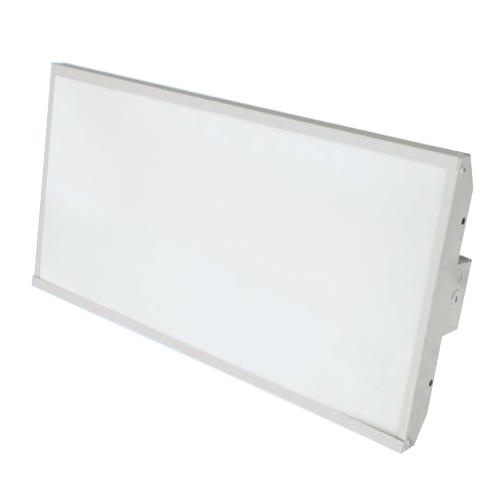

LED LINEAR HIGH BAY

Interior

STARTS AT: $50

FEATURES

  • UL/ETL certified

  • Commercial/architectural grade

  • Easy installation-hardware included

  • Suitable for damp/dry conditions

  • Ideal for gyms, warehouses, and industrial space

  • 0-10V dimming

  • 5-Year Warranty

  • 5000K Color Temperature

  • AC100-277V

  • 120 degree beam angle

TECHNICAL SPECIFICATIONS



MODEL

E-HBLN4-165W-50K

E-HBLN4-225W-50K

E-HBLN4-320W-50K









INPUT POWER

165W

225W

320W





LUMENS

21000LM

29000LM

41600LM







LUMENS/WATT

130LM/W

130LM/W

130LM/W



DIMENSIONS

LED housing measures 50mm deep. With mount measures 96mm.

SIZE AREA (in)

12.5 x 46

17.5 x 24

17.5 x 46



MODEL

E-HBLN4-165W-50K

E-HBLN4-225W-50K

E-HBLN4-320W-50K
